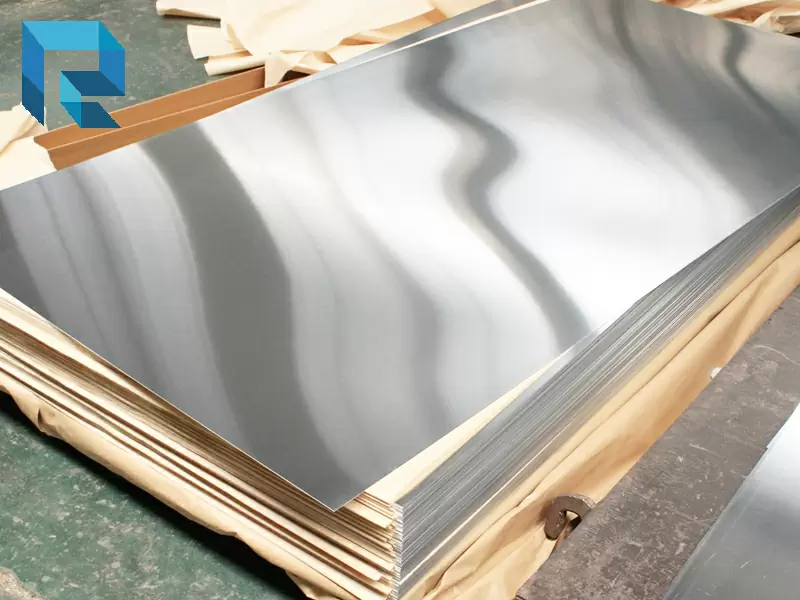

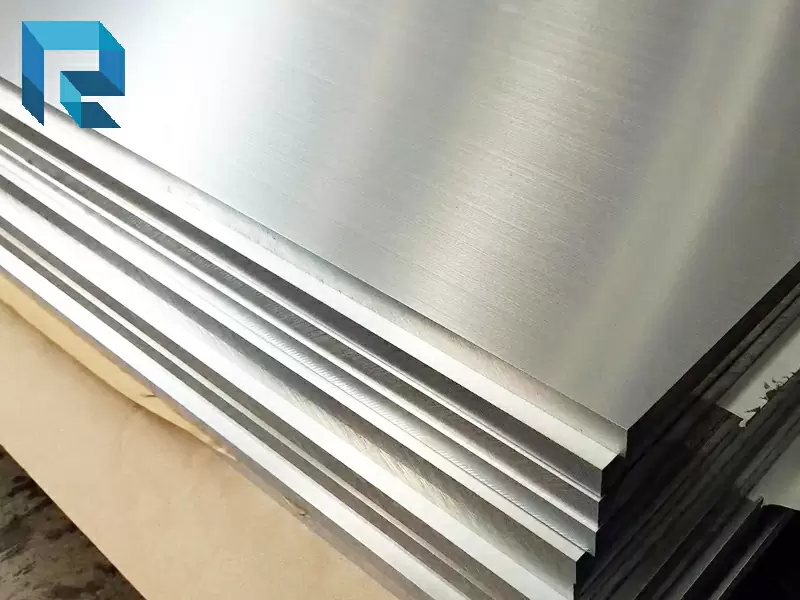

7075 Aluminum Sheet

Product description:

Aluminum sheet refers to the aluminum ingots are finally manufactured into sheet aluminum products by rolling, extruding, stretching and forging with plastic processing methods. In order to ensure the final performance of the plates, the finished products are annealed, solution treated, quenched, naturally aged and artificially aged.

Consulting products

Send Now

Product Details

ItemAluminum sheet
StandardGB/T3190-2008,GB/T3880-2006,ASTM B209,JIS H4000-2006,etc
Material1050,1060,2A14,3003,3103,4032,5454,5754,5056,5082,5086,6061,6060,6082,7075,7475
SizeThickness0.2-200mm
Width100-2000mm
Length2000mm,2440mm,6000mm,or as required.
Quality controlMill Test Certification is supplied with shipment,Third Part Inspection is acceptable.
SurfaceBright,polished,hair line,brush,sand blast,checkered,embossed,etching,etc
Trade conditions
Trade termsPrice termEx-Work,FOB,CNF,CFR,etc
Payment TermTT,L/C,western Union,etc
MOQ500Kg
Delivery time

1.The products in stock will delivery immediately received the payment.

2.According to the order quantity,prompt delivery.

PackageStandard export package,such as wooden box or as required.
Application

1)Further making utensil.

2)Solar reflective film

3)The appearance of the building

4)Interior decorating:ceilings,walls,etc.

5)Furniture cabinets

6)Elevator decoraction

7)Signs,nameplate,bags making.

8)Decorated inside and outside the car

9)Household appliances:refrigerators,microwave ovens,audio equipment,etc.

10)The consumer electronics:mobile phones,digital cameras,MP3,U disk,etc.

Container size

20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High) 24-26CBM

40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High) 54CBM

40ft HC:12032mm(Length)x2352mm(Width)x2698mm(High) 68CBM


Product Material

Chemical Composition:

Alloy%Si%Mg%Mn%Cu%Fe%Cr%Zn%Ti%Others%Al
EN AW-1050 A0.25Max0.05Max0.05Max0.05Max0.40Max0.07Max0.05Max99.5 Min
EN AW-1070 A0.20Max0.03Max0.03Max0.03Max0.25Max0.07Max0.03Max99.7 Min
EN AW-1100Si+Fe 0.95 Max0.05 Max0.05 – 0.200.10 Max0.05 Max99.0 Min
EN AW-20110.40 Max5.00 – 6.000.70 Max0.30 MaxBi : 0.20 – 0.60Pb : 0.20 – 0.60Remainder
EN AW-20140.50 – 1.200.20 – 0.800.40 – 1.203.90 – 5.000.70 Max0.10 Max0.25 Max0.15 MaxRemainder
EN AW-20240.50 Max1.20 -1.800.30 – 0.903.80 – 4.900.50 Max0.10 Max0.25 Max0.15 Max0.15 MaxRemainder
EN AW-30030.60 Max1.00 – 1.500.05 – 0.200.70 Max0.10 Max0.15 MaxRemainder
EN AW-31030.50 Max0.30 Max0.90 – 1.500.10 Max0.70 Max0.10 Max0.20 Max0.10 MaxRemainder
EN AW-6101A0.30 – 0.70.40 – 0.900.03 Max0.05 Max0.40 Max0.10 MaxRemainder
EN AW-60050.60 – 0.900.40 – 0.600.10 Max0.10 Max0.35 Max0.10 Max0.10 Max0.10 MaxRemainder
EN AW-63510.70 – 1.300.40 – 0.800.40 – 0.800.10 Max0.50 Max0.20 Max0.20 Max0.15 MaxRemainder
EN AW-60600.30 – 0.600.35 – 0.600.10 Max0.10 Max0.10 – 0.300.05 Max0.15 Max0.10 MaxRemainder
EN AW-60610.40 – 0.800.80 – 1.200.15 Max0.15 – 0.400.70 Max0.04 – 0.350.25 Max0.15 MaxRemainder
EN AW-60630.20 – 0.600.45 – 0.900.10 Max0.10 Max0.35 Max0.10 Max0.10 Max0.10 MaxRemainder
EN AW-60820.70 – 1.300.60 -1.200.40 – 1.000.10 Max0.50 Max0.25 Max0.20 Max0.10 Max

Mechanical Properties:

ALUMINUMALLOYGradeNormalTemperTemperTensile StrengthN/mm²Yield StrengthN/mm²Elongation%Brinell HardnessHB
PlateBar
1XXX1050O,H112,HO783440-20
1060O,H112,HO703043-19
Al-Cu(2XXX)2019O,T3,T4,T6,T8T85145035010--
2024O,T4T44703252017120
Al-Mn(3XXX)3003O,H112,H O11040303728
3004O,H112,HO18070202245
Al-Si (4XXX)4032O,T6,T62T6380315-9120
Al-Mg(5XXX)5052O,H112,HH34260215101268
5083O,H112,HO290145-20-
Al-Mg-Si(6XXX)6061O,T4,T6,T8T6310275121595
6063O,T1,T5,T6,T8T518514512-60
Al-Zn-Mg(7XXX)7003T5T531525515-85
7075O,T6T6570505119

Packing & Delivery

Packing Details : Standard seaworthy packing

Delivery Details : 7-10 days after deposit
